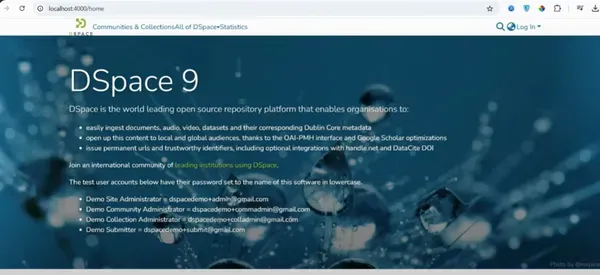

Install DSpace 9 on Ubuntu 24.04 LTS (2025 Update)

Siyamex

Apr 23, 2025 — 17 min read

dspace 9

Deploy your own open-source digital repository with this comprehensive, step-by-step guide for installing DSpace 9.0 (Release Candidate 1) on Ubuntu 24.04 LTS. This tutorial covers prerequisites, backend (API server), and frontend (dspace-angular UI) setup, aligned with official DSpace recommendations.

Target Audience: System Administrators, Repository Managers, Librarians, Developers deploying DSpace 9.

Prerequisites Checklist (Verified Requirements)
Initial System Setup (Ubuntu 24.04)
Install Java Development Kit (JDK 17)
Install Build Tools (Maven & Ant)
Install and Configure PostgreSQL (Database)
Install Apache Solr (Search Index)
Download DSpace 9 Backend Source Code
Install and Configure Apache Tomcat 10.1 (Optional Servlet Engine)
Set Up DSpace Database Schema
Configure DSpace Backend (local.cfg)
Build DSpace 9 Backend
Install/Deploy DSpace 9 Backend (Option A: WAR | Option B: Runnable JAR)
Deploy Solr Cores & Configure Permissions
Initialize Database & Create Administrator
Final Backend Verification & Startup
Install DSpace 9 Frontend (dspace-angular via npm)
Configure DSpace 9 Frontend
Run DSpace 9 Frontend (Development vs. Production with PM2)
Production Readiness: HTTPS Setup (Crucial!)
Optional: Usage Statistics Geolocation Database
Next Steps & Essential Tasks (Cron Jobs)

1. Prerequisites Checklist (Verified Requirements)

Ensure your system meets these requirements before starting.

Operating System: Ubuntu 24.04 LTS (Fresh installation highly recommended). Other UNIX-like OS or Windows are possible but this guide focuses on Ubuntu.
Java Development Kit (JDK): JDK 17 (LTS) required (OpenJDK recommended). Must be the full JDK, not just the JRE.
Apache Maven: 3.8.x or higher (Avoid End-of-Life versions).
Apache Ant: 1.10.x or later.
PostgreSQL: Version 14.x, 15.x, 16.x, or 17.x. Ubuntu 24.04 provides v16. Requires the pgcrypto extension installed and enabled. UTF-8 encoding is essential (default).
Apache Solr: Version 8.x. Crucially, version 8.11.1 or higher is strongly recommended due to the critical Log4j vulnerability (CVE-2021-44228). Solr 9 is not yet fully supported without modifications. Solr must run with authentication disabled (default). Access should be firewalled.
Servlet Engine (Optional): Required only if deploying the backend as a WAR file (Option A in Step 12). Apache Tomcat 10.1.x is needed (Tomcat 9 is NOT supported). Alternatively, Jetty 11+ or equivalent Jakarta EE 9+ compatible engine.
DSpace Backend: Version 9.0-rc1 source code.
DSpace Angular Frontend: Version 9.0-rc1 source code (matching version).
Node.js: LTS versions v18.x, v20.x, or v22.x are recommended for the frontend.
npm (Node Package Manager): Comes with Node.js. Used for frontend dependency management and build scripts.
PM2 (Process Manager): Optional but highly recommended for running the Node.js frontend in production.
Text Editor: nano or gedit. This guide uses gedit. (sudo apt install gedit -y)
Essential Tools: wget, curl, git, build-essential, zip, unzip.

2. Initial System Setup (Ubuntu 24.04)

Prepare the base system.

(Open Terminal: Ctrl+Alt+T)
(Red commands executed in the terminal.)

a) Update System:

sudo apt update && sudo apt upgrade -y

b) Create DSpace OS User (Recommended):
While optional, running DSpace components (especially Tomcat if used, and the build process) under a dedicated dspace user is good practice. The user running Tomcat must have write access to the DSpace installation directory (/dspace).

sudo useradd -m dspace
sudo passwd dspace # Set a strong password
sudo usermod -aG sudo dspace # Grant sudo rights for setup

c) Create DSpace Installation Directory ([dspace]):
This is where the compiled DSpace backend will reside. Let's use /dspace.

sudo mkdir /dspace
sudo chown dspace:dspace /dspace # Assign ownership to the dspace user

d) Install Essential Tools:

sudo apt install wget curl git build-essential gedit zip unzip -y

Important: For subsequent steps, either log in as the dspace user or continue using your admin user with sudo where necessary. Commands assume you are logged in as a user with sudo privileges unless otherwise specified (e.g., running builds as dspace).

3. Install Java Development Kit (JDK 17)

DSpace 9 requires JDK 17.

sudo apt install openjdk-17-jdk -y

Verify Installation:

java -version
javac -version

Set Environment Variables:
Ensure JAVA_HOME is set system-wide and configure default Java options.

sudo gedit /etc/environment

Add these lines at the end:

JAVA_HOME="/usr/lib/jvm/java-17-openjdk-amd64"
JAVA_OPTS="-Xmx512M -Xms64M -Dfile.encoding=UTF-8"

Save, close, and apply:

source /etc/environment
echo $JAVA_HOME
echo $JAVA_OPTS

4. Install Build Tools (Maven & Ant)

Required for compiling and installing the DSpace backend.

sudo apt install maven ant -y

Verify Versions (Check against prerequisites):

mvn -v
ant -v

5. Install and Configure PostgreSQL (Database)

Ubuntu 24.04 provides PostgreSQL 16, which is compatible.

a) Install PostgreSQL & Contrib Package: The contrib package includes pgcrypto.

sudo apt-get install postgresql postgresql-client postgresql-contrib libpostgresql-jdbc-java -y

b) Check Status & Version:

sudo systemctl status postgresql # Press 'q' to exit
psql --version # Should show 16.x

c) Secure postgres Admin User:

sudo passwd postgres # Set a strong password

d) Configure Network Access:
Ensure PostgreSQL accepts TCP/IP connections from DSpace (at least on localhost).

sudo gedit /etc/postgresql/16/main/postgresql.conf

Find #listen_addresses = 'localhost'. Uncomment it (remove #). 'localhost' is usually correct if DSpace backend runs on the same server. If not, adjust accordingly (e.g., '*'). Save and close.

e) Configure Client Authentication (pg_hba.conf):
Allow the dspace database user to connect via password.

sudo gedit /etc/postgresql/16/main/pg_hba.conf

Add this line near the top, before any generic rules:

# TYPE  DATABASE        USER            ADDRESS                 METHOD
# DSpace configuration: Allow 'dspace' user to connect to 'dspace' db from localhost via md5 password
host    dspace          dspace          127.0.0.1/32            md5

Save and close.

f) Restart PostgreSQL:

sudo systemctl restart postgresql

6. Install Apache Solr (Search Index)

DSpace uses Solr for search. Use Solr 8.11.1 or higher.

a) Download Solr (e.g., 8.11.4):

cd /opt # Or another suitable location like /usr/local
sudo wget https://downloads.apache.org/lucene/solr/8.11.4/solr-8.11.4.tgz # .tgz often preferred on Linux
sudo tar xzf solr-8.11.4.tgz
sudo rm solr-8.11.4.tgz # Clean up archive
# Optional: Create a symlink for easier upgrades
# sudo ln -s /opt/solr-8.11.4 /opt/solr

b) Create Solr User (Recommended for Security):

sudo useradd -r -m -U -d /var/solr -s /usr/sbin/nologin solr
# The home dir /var/solr might be created by Solr service scripts later if using them.

c) Set Solr Ownership:
Ensure the user running Solr (e.g., solr or dspace) owns the Solr files. NEVER run Solr as root in production.

sudo chown -R solr:solr /opt/solr-8.11.4
# If using the symlink: sudo chown -R solr:solr /opt/solr

d) Start Solr (Manual Start):
For production, setting up Solr as a systemd service is highly recommended (see Solr docs: Taking Solr to Production). For initial setup:

# Run as the designated Solr user (e.g., 'solr')
sudo -u solr /opt/solr-8.11.4/bin/solr start -p 8983
# To stop: sudo -u solr /opt/solr-8.11.4/bin/solr stop -p 8983
# To check status: sudo -u solr /opt/solr-8.11.4/bin/solr status

Note: Ensure port 8983 is not used by another service.

e) Verify Solr:
Open http://localhost:8983/solr in a browser. You should see the Solr Admin UI. Crucially, ensure authentication is disabled (the default). Firewall port 8983 from public access.

Security Note (Log4j): Solr 8.11.1+ mitigates CVE-2021-44228. If using an older 8.x version (NOT RECOMMENDED), add -Dlog4j2.formatMsgNoLookups=true to SOLR_OPTS where Solr is started.

7. Download DSpace 9 Backend Source Code

Get the specific 9.0-rc1 release.

a) Create Build Directory:

sudo mkdir /build
sudo chown dspace:dspace /build # Grant build user ownership
cd /build

b) Download Source (as dspace user or use sudo):

# Option 1: As dspace user
# su - dspace
# cd /build
# wget https://github.com/DSpace/DSpace/archive/refs/tags/dspace-9.0-rc1.tar.gz
# tar zxvf dspace-9.0-rc1.tar.gz
# exit

# Option 2: With sudo
sudo wget https://github.com/DSpace/DSpace/archive/refs/tags/dspace-9.0-rc1.tar.gz -O dspace-9.0-rc1.tar.gz
sudo tar zxvf dspace-9.0-rc1.tar.gz
sudo chown -R dspace:dspace /build/DSpace-dspace-9.0-rc1 # Ensure correct ownership

Let [dspace-source] refer to /build/DSpace-dspace-9.0-rc1.

8. Install and Configure Apache Tomcat 10.1 (Optional Servlet Engine)

Required ONLY if deploying the backend as a WAR file (Option A in Step 12). Skip this step if using the Runnable JAR (Option B).

a) Install Tomcat 10.1:
The version in standard Ubuntu repos might be older. Check apt-cache policy tomcat10. If it's not 10.1.x, you may need to download from tomcat.apache.org or use a PPA. Assuming apt provides 10.1.x or you install it manually:

# Example if apt has it (VERIFY VERSION FIRST!)
sudo apt install tomcat10 # Check version carefully!

# If installed manually, follow Tomcat's documentation.

b) Configure Tomcat User Access:
Tomcat's running user (often tomcat) needs write access to /dspace.

Method 1 (Change Ownership): sudo chown -R tomcat:tomcat /dspace (Adjust user/group if different).
Method 2 (Run Tomcat as dspace): Modify Tomcat startup scripts/service file to run as the dspace user.

Method 3 (Systemd ReadWritePaths - Debian/Ubuntu):

sudo systemctl stop tomcat10 # Stop Tomcat first
sudo systemctl edit tomcat10.service # Creates an override file

Add the following content:

[Service]
ReadWritePaths=/dspace

Save, close, then:

sudo systemctl daemon-reload
sudo systemctl start tomcat10

c) Configure Tomcat server.xml for UTF-8:

sudo gedit /etc/tomcat10/server.xml # Path may differ for manual installs

Find the HTTP <Connector> element (port 8080). Ensure it includes URIEncoding="UTF-8":

<Connector port="8080" protocol="HTTP/1.1"
           connectionTimeout="20000"
           redirectPort="8443"
           URIEncoding="UTF-8" />
           <!-- Add other attributes like minSpareThreads, disableUploadTimeout as needed -->

d) Configure Tomcat AJP Connector (If using Apache proxy with AJP):
If you plan to use mod_proxy_ajp with Apache HTTPD later (Step 19), uncomment or add the AJP Connector in server.xml:

<Connector protocol="AJP/1.3"
           address="::1"
           port="8009"
           redirectPort="8443"
           secretRequired="false"  <!-- Add if needed for simpler proxy setup -->
           URIEncoding="UTF-8" />

Save and close server.xml.

e) Set Tomcat JAVA_OPTS:
Ensure Tomcat starts with adequate memory and correct encoding. Edit the Tomcat service file or environment configuration (e.g., /etc/default/tomcat10 or systemd override) to include:
JAVA_OPTS="-Xmx512M -Xms64M -Dfile.encoding=UTF-8" (Adjust memory -Xmx as needed).

f) Restart Tomcat:

sudo systemctl restart tomcat10.service

9. Set Up DSpace Database Schema

Create the database user and database within PostgreSQL.

a) Switch to postgres OS User:

sudo su - postgres

b) Create DSpace Database User (dspace):
Use the password you'll set in local.cfg.

createuser --username=postgres --no-superuser --pwprompt dspace
# Enter password (e.g., dspace) and confirm.

c) Create DSpace Database (dspace):

createdb --username=postgres --owner=dspace --encoding=UNICODE dspace

d) Enable pgcrypto Extension:

psql --username=postgres dspace -c "CREATE EXTENSION pgcrypto;"
# If this fails, ensure 'postgresql-contrib' is installed.

e) (Alternative pgcrypto Setup): See official docs for installing into a separate schema if desired (more complex).

f) Exit postgres User:

exit

10. Configure DSpace Backend (local.cfg)

Customize DSpace settings.

a) Create local.cfg:

cd /build/DSpace-dspace-9.0-rc1/dspace/config
sudo cp local.cfg.EXAMPLE local.cfg
sudo chown dspace:dspace local.cfg # Ensure build user owns it

b) Edit local.cfg (as dspace user or with sudo):

# As dspace:
# gedit local.cfg
# Or with sudo:
sudo -u dspace gedit local.cfg

Review and set these essential properties:

dspace.dir = /dspace (Crucial: Match Step 2c)
dspace.server.url = http://localhost:8080/server (Initial URL for backend API. Update later if using HTTPS/proxy)
dspace.ui.url = http://localhost:4000 (Initial URL for frontend UI. Update later if using HTTPS/proxy)
solr.server = http://localhost:8983/solr (Uncomment and verify URL)
db.url = jdbc:postgresql://localhost:5432/dspace (Verify host/port/db name)
db.driver = org.postgresql.Driver (Default should be fine)
db.dialect = org.hibernate.dialect.PostgreSQLDialect (Default should be fine)
db.username = dspace (Matches DB user from Step 9b)
db.password = dspace (Matches password from Step 9b)
db.schema = public (Default unless you used a custom schema)

Also configure (can be done later):

dspace.name = My DSpace 9 Repository
Mail settings (mail.server, mail.from.address, feedback.recipient, mail.admin)

Important: Any setting from dspace.cfg or config/modules/*.cfg can be overridden by adding it to local.cfg.

Save and close the file.

11. Build DSpace 9 Backend

Compile the source code using Maven. Run this as the dspace user.

su - dspace # Switch to dspace user
cd /build/DSpace-dspace-9.0-rc1
mvn package
exit # Return to your admin user session

This creates build artifacts in [dspace-source]/dspace/target/ and the installer in [dspace-source]/dspace/target/dspace-installer/.

12. Install/Deploy DSpace 9 Backend

Choose one of the following deployment methods:

Option A: Deploy WAR to Tomcat (Traditional)
Requires Tomcat installed (Step 8).

a) Install using Ant (Run as dspace user):

su - dspace
cd /build/DSpace-dspace-9.0-rc1/dspace/target/dspace-installer
ant fresh_install
exit

This populates the /dspace directory.

b) Deploy server.war to Tomcat: Choose one technique:

Technique B (Copy WAR):

sudo cp /dspace/webapps/server.war /var/lib/tomcat10/webapps/ # Adjust Tomcat webapps path if needed
# Tomcat should auto-deploy it as /server

Technique A (Context XML): Create /etc/tomcat10/Catalina/localhost/server.xml (path may vary):

<?xml version='1.0'?>
<Context docBase="/dspace/webapps/server" reloadable="false"/>

c) Restart Tomcat:

sudo systemctl restart tomcat10.service

Option B: Deploy Runnable JAR (New in DSpace 8+)
Does NOT require external Tomcat.

a) Install using Ant (Identical to Option A, Step a - still needed to populate /dspace):

su - dspace
cd /build/DSpace-dspace-9.0-rc1/dspace/target/dspace-installer
ant fresh_install
exit

b) Locate the Runnable JAR:
The build process (Step 11) should have created [dspace-source]/dspace/target/server-boot.jar. You might want to copy this JAR to a deployment location, e.g., /dspace/bin.

# Example copy:
sudo cp /build/DSpace-dspace-9.0-rc1/dspace/target/server-boot.jar /dspace/bin/
sudo chown dspace:dspace /dspace/bin/server-boot.jar

c) Run the JAR (as dspace user):
For production, use a process manager (like systemd or PM2) to manage this JAR. For initial testing:

# Switch to dspace user to run
su - dspace
cd /dspace/bin # Or wherever you put the JAR
java -jar server-boot.jar
# Use Ctrl+C to stop
exit

You can override configurations via command-line arguments (e.g., --dspace.dir=/dspace, --server.port=8080) or environment variables. See DSpace docs.

13. Deploy Solr Cores & Configure Permissions

Copy the DSpace Solr core configurations to your Solr instance.

a) Copy Solr Configsets:

# Destination might be different depending on Solr setup (e.g., /var/solr/data/configsets)
SOLR_CONFIGSETS_DIR="/opt/solr-8.11.4/server/solr/configsets" # Adjust if needed
sudo cp -R /dspace/solr/* ${SOLR_CONFIGSETS_DIR}/

b) Set Ownership for Solr Cores:
The user running Solr (solr in our example) must own these files.

sudo chown -R solr:solr ${SOLR_CONFIGSETS_DIR}/*

c) Restart Solr:
Use the command appropriate for how you started Solr (manual or service). Example for manual start:

sudo -u solr /opt/solr-8.11.4/bin/solr restart -p 8983

d) Verify Solr Cores:
Go to the Solr Admin UI (http://localhost:8983/solr). Use the "Core Selector" dropdown on the left. You should see cores like search, statistics, oai, authority. Check the logs if they don't appear.

14. Initialize Database & Create Administrator

Prepare the database schema and create the first admin user.

a) Initialize/Migrate Database:
Run as the dspace OS user or with sudo.

sudo /dspace/bin/dspace database migrate
# Check output for SUCCESS.

b) Verify Database Status:

sudo /dspace/bin/dspace database info
# All migrations should show as "Success" or "Out of Order". Fix errors if any show "Pending" or "Failed".

c) Create DSpace Administrator:

sudo /dspace/bin/dspace create-administrator

Follow prompts for email, name, and password.

15. Final Backend Verification & Startup

Ensure permissions are correct and verify backend endpoints.

a) Ensure Correct Ownership of /dspace:
If using Tomcat (Option A), ensure the Tomcat user owns /dspace. If running the JAR (Option B), the dspace user should own it. We set dspace:dspace earlier, which works for the JAR method. If using Tomcat run by tomcat, you might need: sudo chown -R tomcat:tomcat /dspace. Adjust as per your setup.

b) Start/Restart Backend:

Tomcat (Option A): sudo systemctl restart tomcat10.service
Runnable JAR (Option B): Start it using java -jar ... or your process manager (systemd/PM2).

c) Verify Backend Endpoints:

REST API: http://localhost:8080/server (Should show API status/welcome)
OAI-PMH: http://localhost:8080/server/oai/request?verb=Identify (Should return XML)

16. Install DSpace 9 Frontend (dspace-angular via npm)

Set up the User Interface. Uses npm, not yarn.

a) Install Node.js (LTS v18/20/22) & npm:
Using NodeSource repositories is often cleaner than default apt versions.

# Example for Node.js 20.x (LTS):
curl -fsSL https://deb.nodesource.com/setup_20.x | sudo -E bash -
sudo apt-get install -y nodejs

Verify installation:

node -v # Should be 20.x.y
npm -v

b) Install PM2 Globally (Recommended for Production):

sudo npm install --global pm2

c) Download DSpace Angular Source ([dspace-angular]):
Place this somewhere suitable, e.g., /opt or the dspace user's home.

cd /opt # Or /home/dspace
sudo wget https://github.com/DSpace/dspace-angular/archive/refs/tags/dspace-angular-9.0-rc1.tar.gz
sudo tar zxvf dspace-angular-9.0-rc1.tar.gz
sudo rm dspace-angular-9.0-rc1.tar.gz
sudo chown -R dspace:dspace /opt/dspace-angular-dspace-9.0-rc1 # Grant ownership

Let [dspace-angular] refer to /opt/dspace-angular-dspace-9.0-rc1.

d) Install Frontend Dependencies (using npm):
Run as the dspace user or with sudo.

cd [dspace-angular]
# Option 1 (as dspace user):
# su - dspace
# cd [dspace-angular]
# npm install
# exit
# Option 2 (with sudo - might need --unsafe-perm if permission issues):
sudo npm install # --unsafe-perm

17. Configure DSpace 9 Frontend

Configure the UI to connect to the backend API.

a) Create Production Configuration (config.prod.yml):
We'll configure for production running. Create a deployment directory ([dspace-ui-deploy]) separate from the source code ([dspace-angular]). This minimizes downtime during rebuilds.

# Example deployment location
sudo mkdir /opt/dspace-ui-deploy
sudo chown dspace:dspace /opt/dspace-ui-deploy

Let [dspace-ui-deploy] refer to /opt/dspace-ui-deploy.

Create the config directory and file:

sudo mkdir [dspace-ui-deploy]/config
sudo cp [dspace-angular]/config/config.example.yml [dspace-ui-deploy]/config/config.prod.yml
sudo chown -R dspace:dspace [dspace-ui-deploy]/config # Ensure ownership

b) Edit config.prod.yml:

sudo -u dspace gedit [dspace-ui-deploy]/config/config.prod.yml

Modify the ui and rest sections. Crucially, the rest section must match the public URL of your backend (dspace.server.url). The ui section defines where the Node.js process listens (often localhost if using a proxy).

# Example: UI runs locally on 4000, proxied via HTTPS later. Backend is at http://localhost:8080/server initially.
ui:
  ssl: false
  host: localhost # Node listens on localhost
  port: 4000      # Node listens on port 4000
  # nameSpace: / # Usually root / is fine

# Example: Backend API URL accessible initially via HTTP
rest:
  ssl: false
  host: localhost
  port: 8080
  nameSpace: /server # Must match backend context path

Important: Update these URLs later (Step 19) if you set up HTTPS proxying. The rest URL here MUST be the final, public URL the browser uses to reach the backend.

Save and close.

c) (Optional) Test REST Connection:
Copy the config back to source and run the test script.

cp [dspace-ui-deploy]/config/config.prod.yml [dspace-angular]/config/
cd [dspace-angular]
# As dspace or with sudo:
sudo npm run test:rest

Fix connection or SSL errors before proceeding.

18. Run DSpace 9 Frontend (Development vs. Production with PM2)

Option A: Development Mode (Temporary Test)
Runs directly from source, reflects code changes instantly.

cd [dspace-angular]
# May need these if memory/SSL issues occur
# export NODE_OPTIONS="--max-old-space-size=8192"
# export NODE_TLS_REJECT_UNAUTHORIZED='0' # If backend uses self-signed cert
# Run as dspace or with sudo
sudo npm run start # 'start' usually runs dev mode

Access at http://localhost:4000 (or as configured). Stop with Ctrl+C.

Option B: Production Mode (Build and Run with PM2)

1. Build for Production: Compile the UI code into the dist folder.

cd [dspace-angular]
# export NODE_OPTIONS="--max-old-space-size=8192" # May need more memory
# Run as dspace or with sudo
sudo npm run build:prod

2. Deploy Compiled Code: Copy the dist folder to your deployment directory.

# Ensure target dir exists: sudo mkdir -p [dspace-ui-deploy]
sudo cp -r [dspace-angular]/dist [dspace-ui-deploy]/
sudo chown -R dspace:dspace [dspace-ui-deploy]/dist # Ensure ownership

The structure must be [dspace-ui-deploy]/dist/server/main.js etc.

3. Create PM2 Configuration (dspace-ui.json):
Create this file, e.g., in [dspace-ui-deploy]/dspace-ui.json.

sudo -u dspace gedit [dspace-ui-deploy]/dspace-ui.json

Paste and carefully edit paths (cwd, script):

{
    "apps": [
        {
           "name": "dspace-ui",
           "cwd": "/opt/dspace-ui-deploy/", // <== SET YOUR DEPLOY PATH
           "script": "dist/server/main.js", // <== Relative to cwd
           "instances": "max", // Use CPU cores
           "exec_mode": "cluster", // Enable cluster mode
           "env": {
              // Sets Node environment
              "NODE_ENV": "production",
              // Optional: Override config.prod.yml via ENV vars here
              // "DSPACE_UI_SSL": "false",
              // "DSPACE_UI_HOST": "localhost",
              // "DSPACE_UI_PORT": "4000",
              // "DSPACE_REST_SSL": "false",
              // "DSPACE_REST_HOST": "localhost",
              // "DSPACE_REST_PORT": "8080",
              // "DSPACE_REST_NAMESPACE": "/server"
           }
        }
    ]
}

For Windows, use double backslashes in paths (C:\\path\\...) and ensure cluster mode.*

Save and close. Ensure dspace user owns this file.

4. Start with PM2:

# Run as user with rights to manage PM2 (e.g., your sudo user)
sudo pm2 start [dspace-ui-deploy]/dspace-ui.json

Check logs: sudo pm2 logs dspace-ui
Stop: sudo pm2 stop dspace-ui (use name from JSON)
Restart: sudo pm2 restart dspace-ui
Make PM2 start on boot: sudo pm2 startup systemd (follow instructions)

5. Access Frontend:
Open your browser to the URL configured in the ui section of config.prod.yml (e.g., http://localhost:4000). If using a proxy (Step 19), access via the final public URL (e.g., https://your.dspace.url/).

19. Production Readiness: HTTPS Setup (Crucial!)

Running DSpace without HTTPS in production is insecure and will likely break logins. Use a reverse proxy like Apache HTTPD or Nginx.

a) Install Apache or Nginx:

# Apache
sudo apt install apache2
sudo a2enmod proxy proxy_http headers rewrite ssl # Enable needed modules

# OR Nginx
sudo apt install nginx

b) Obtain SSL Certificate: Use Let's Encrypt (via certbot) or purchase a commercial certificate.

# Example using certbot for Apache
sudo apt install certbot python3-certbot-apache
sudo certbot --apache -d your.dspace.url # Replace with your domain

c) Configure Proxy:

Goal: Proxy public HTTPS requests (https://your.dspace.url/) to the UI (Node.js on http://localhost:4000/) and backend API (https://your.dspace.url/server/) to Tomcat/JAR (http://localhost:8080/server or AJP ajp://localhost:8009/server).

Nginx Example (/etc/nginx/sites-available/dspace):

# Redirect HTTP to HTTPS
server {
    listen 80;
    listen [::]:80;
    server_name your.dspace.url;
    return 301 https://$host$request_uri;
}

server {
    listen 443 ssl http2;
    listen [::]:443 ssl http2;
    server_name your.dspace.url;

    # --- SSL Config ---
    ssl_certificate /etc/letsencrypt/live/your.dspace.url/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/your.dspace.url/privkey.pem;
    # include /etc/letsencrypt/options-ssl-nginx.conf; # Recommended
    # ssl_dhparam /etc/letsencrypt/ssl-dhparams.pem; # Recommended

    # --- Proxy Settings ---
    location / { # UI Proxy
        proxy_pass http://localhost:4000; # To Node.js
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }

    location /server { # Backend API Proxy
        proxy_pass http://localhost:8080/server; # To Tomcat/JAR
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }

    # Access and error logs
    access_log /var/log/nginx/dspace-access.log;
    error_log /var/log/nginx/dspace-error.log;
}

Enable the site: sudo ln -s /etc/nginx/sites-available/dspace /etc/nginx/sites-enabled/
Test and reload Nginx: sudo nginx -t && sudo systemctl reload nginx

Apache HTTPD Example (/etc/apache2/sites-available/dspace-ssl.conf):
(Assumes certbot configured basic SSL; adapt as needed)

<VirtualHost *:443>
    ServerName your.dspace.url # Your public domain
    # ServerAdmin admin@your.dspace.url

    # --- SSL Config (Likely added by Certbot) ---
    SSLEngine on
    SSLCertificateFile /etc/letsencrypt/live/your.dspace.url/fullchain.pem
    SSLCertificateKeyFile /etc/letsencrypt/live/your.dspace.url/privkey.pem
    # Include /etc/letsencrypt/options-ssl-apache.conf # Recommended

    # --- Proxy Settings ---
    ProxyPreserveHost On
    RequestHeader set X-Forwarded-Proto "https"

    # Proxy UI requests (root /) to Node on port 4000
    ProxyPass / http://localhost:4000/ retry=0
    ProxyPassReverse / http://localhost:4000/

    # Proxy Backend API requests (/server) to Tomcat/JAR on port 8080 (HTTP)
    ProxyPass /server http://localhost:8080/server retry=0
    ProxyPassReverse /server http://localhost:8080/server

    # --- OR Proxy Backend via AJP (if Tomcat AJP enabled) ---
    # ProxyPass /server ajp://localhost:8009/server retry=0
    # ProxyPassReverse /server ajp://localhost:8009/server

    ErrorLog ${APACHE_LOG_DIR}/dspace-error.log
    CustomLog ${APACHE_LOG_DIR}/dspace-access.log combined
</VirtualHost>

# Optional: Redirect HTTP to HTTPS
<VirtualHost *:80>
    ServerName your.dspace.url
    Redirect permanent / https://your.dspace.url/
</VirtualHost>

Enable the site: sudo a2ensite dspace-ssl.conf
Reload Apache: sudo systemctl reload apache2

d) Update DSpace Configuration URLs:
After setting up HTTPS, you must update the URLs in your DSpace configurations:

Backend (local.cfg): Update dspace.server.url and dspace.ui.url to use https://your.dspace.url. Restart Tomcat or the Runnable JAR.
Frontend (config.prod.yml): Update the rest section (host, ssl: true, port: 443) to point to the public HTTPS backend URL (https://your.dspace.url/server). Restart the UI via PM2 (sudo pm2 restart dspace-ui).

20. Optional: Usage Statistics Geolocation Database

To track usage statistics by location:

Obtain a City Database:
- MaxMind GeoLite2 City: Free, but requires signup and license key. Install geoipupdate tool (sudo apt install geoipupdate), configure key in /etc/GeoIP.conf, run sudo geoipupdate. Database likely at /var/lib/GeoIP/GeoLite2-City.mmdb.
- DB-IP City Lite: Free, no account needed. Download the MMDB file manually.
Configure DSpace: Edit local.cfg and set usage-statistics.dbfile to the full path of your .mmdb file (e.g., /var/lib/GeoIP/GeoLite2-City.mmdb).
Restart DSpace backend.

21. Next Steps & Essential Tasks (Cron Jobs)

Scheduled Tasks (Cron): DSpace relies on background tasks. Set up cron jobs (usually run as the dspace user) for tasks like:
- Media Filter (thumbnail generation, text extraction): [dspace]/bin/dspace filter-media
- Checksum Checker: [dspace]/bin/dspace checker
- Statistics Processing: [dspace]/bin/dspace stats-util -u (Update Solr stats), [dspace]/bin/dspace stats-util -o (Update GeoIP)
- Subscription Emails: [dspace]/bin/dspace sub-daily
- See DSpace Documentation: Scheduled Tasks via Cron for details and recommended frequencies.
Backup: Implement a robust backup strategy for the database, assetstore (/dspace/assetstore), and Solr index.
Customization: Explore theming, configuration options, and integrations.

Congratulations! You have successfully installed DSpace 9 on Ubuntu 24.04. Remember to consult the official DSpace 9 Documentation for further details and advanced topics.
